Understanding I in Electrical Engineering

1. What Does I Actually Mean?

Okay, let's be honest. When you first see "I" in an electrical context, you might think someone's gone a little overboard with the subscript. Is it a secret code? A mathematical trick? Well, not exactly. In the world of electricity, I isn't just about looking fancy; it's a shorthand way of representing something very important: power loss due to resistance. Specifically, it's part of the formula IR, which calculates the power dissipated as heat in a resistor.

Think of it like this: electrons are like tiny energetic particles trying to squeeze through a crowded doorway (the resistor). As they jostle and bump against each other and the "doorway," they lose some energy. That lost energy transforms into heat. The amount of heat generated depends on how many electrons are pushing through (current, or I) and how difficult the doorway is to get through (resistance, or R). So, IR gives us the exact amount of power being "lost" as heat.

The "I" stands for current, measured in Amperes (A). When you square it (I), you're amplifying the effect of the current. A small increase in current can lead to a much larger increase in power loss. That's why managing current flow is so critical in electrical systems — we don't want to melt our wires!

This concept, while seemingly simple, is a cornerstone of electrical engineering. It's used in everything from designing efficient power grids to preventing your laptop charger from becoming a mini-furnace. Understanding I is like having a secret weapon for deciphering electrical circuits.

2. Why is IR So Important?

Imagine you're designing a power cable to deliver electricity across a city. If you underestimate the cable's ability to handle the current, the IR losses could be enormous. The cable would heat up, potentially causing a fire hazard or, at the very least, a significant waste of energy. That's why engineers carefully calculate these losses to choose the right wire gauge and materials.

But it's not just about preventing disasters. Minimizing IR losses also improves efficiency. Think about a battery-powered device. The more power lost as heat in the internal wiring, the less power is available to actually do the work the device is supposed to do. Reducing these losses extends battery life and makes the device more effective.

In essence, IR is a crucial factor in optimizing electrical systems for both safety and performance. It influences design choices, material selection, and even the operating conditions of electrical equipment. Neglecting it is like ignoring the speed limit — you might get away with it for a while, but eventually, you're going to face some serious consequences.

So, next time you're looking at an electrical design or troubleshooting a circuit, remember IR. It's a fundamental principle that explains why things get hot, why energy is lost, and why engineers spend so much time worrying about resistance. Its a pretty hot topic, you might say (pun intended!).

Nodal Analysis Use To Find Currents I1 And I2 In The

IR Losses

3. Real-World Implications of IR

Lets move away from theory for a moment and consider real-world examples. Think about the electrical grid that powers your home. Those massive transmission lines carrying electricity across vast distances aren't perfectly conductive. They have some resistance, albeit very small. Even with that tiny resistance, the immense current flowing through them can lead to significant IR losses. Power companies invest heavily in high-voltage transmission to reduce current (and therefore IR losses) and improve efficiency.

Another example is the design of computer circuits. As chips get smaller and more powerful, they generate more heat. This heat is primarily due to IR losses in the tiny wires and transistors within the chip. Engineers use sophisticated cooling techniques and design strategies to dissipate this heat and prevent the chip from overheating.

Even something as simple as a household extension cord is subject to IR losses. If you plug a high-power appliance into a thin, cheap extension cord, you might notice the cord getting warm. That's because the cord's resistance is causing IR losses, turning electrical energy into heat instead of powering your appliance efficiently. Using a heavier-gauge cord reduces resistance and minimizes these losses.

These practical examples illustrate the pervasiveness of IR losses in electrical systems. Whether it's a large-scale power grid or a tiny microchip, understanding and mitigating IR losses is essential for ensuring efficient, safe, and reliable operation.

4. Mitigating IR Losses

So, how do engineers actually combat IR losses? There are several strategies, each with its own set of advantages and disadvantages. One approach is to use materials with lower resistance. Copper, for example, is a highly conductive metal that's widely used in electrical wiring. However, copper can be expensive, so aluminum is sometimes used as a lower-cost alternative, even though it has a slightly higher resistance.

Another strategy is to increase the cross-sectional area of the conductors. Thicker wires have lower resistance, which reduces IR losses. This is why high-power appliances often have thicker power cords. However, using thicker wires can add weight and cost to the system.

In some applications, cooling techniques are used to dissipate the heat generated by IR losses. This can involve using heat sinks, fans, or even liquid cooling systems. These techniques are particularly important in high-power electronics, such as computers and power amplifiers.

Finally, optimizing the circuit design can also help reduce IR losses. This can involve minimizing the length of wires, using more efficient components, and carefully managing current flow. Sophisticated simulation tools are often used to analyze circuit performance and identify areas where IR losses can be minimized.

In The Circuit Shown Figure Above, E1 And E2 Are Two Cells Having

Delving Deeper

5. A Closer Look at the Formula

Let's dissect the IR formula a bit more. As we've established, "I" represents current, measured in Amperes (A). Squaring the current (I) means multiplying it by itself. This highlights the non-linear relationship between current and power loss. If you double the current, the power loss increases by a factor of four!

"R" represents resistance, measured in Ohms (). Resistance is a measure of how difficult it is for current to flow through a material. Materials with low resistance are good conductors, while materials with high resistance are good insulators.

The product of I and R gives you the power loss, measured in Watts (W). One Watt is equal to one Joule of energy dissipated per second. So, IR tells you how much electrical energy is being converted into heat per unit of time.

Understanding the units of measurement is crucial for correctly applying the IR formula. If you're using Amperes for current and Ohms for resistance, the result will be in Watts. However, if you're using different units, you'll need to convert them before plugging them into the formula.

6. Practical Calculations

Let's work through a few examples to illustrate how to use the IR formula in practice. Suppose you have a resistor with a resistance of 10 Ohms, and a current of 2 Amperes is flowing through it. The power loss due to IR would be:

P = IR = (2 A) 10 = 4 A 10 = 40 Watts

This means that 40 Watts of electrical power are being dissipated as heat in the resistor.

Now, let's consider a different scenario. Suppose you have a power cable with a resistance of 0.1 Ohms, and you want to limit the power loss to 1 Watt. What's the maximum current you can allow to flow through the cable?

We can rearrange the IR formula to solve for current:

I = (P/R) = (1 W / 0.1 ) = 10 A = 3.16 Amperes

This means that you can allow a maximum current of 3.16 Amperes to flow through the cable without exceeding the 1 Watt power loss limit.

Beyond the Basics

7. Skin Effect and Frequency Dependence

The IR formula assumes that the current is uniformly distributed throughout the conductor. However, at higher frequencies, this is not always the case. Due to a phenomenon called the "skin effect," the current tends to flow mainly along the surface of the conductor. This reduces the effective cross-sectional area of the conductor, increasing its resistance and therefore increasing IR losses.

The skin effect becomes more pronounced as the frequency increases. At very high frequencies, the current may be confined to a very thin layer on the surface of the conductor. This is why high-frequency circuits often use conductors with a large surface area, such as hollow tubes or braided wires.

Understanding the skin effect is crucial for designing efficient high-frequency circuits. Ignoring it can lead to significant IR losses and reduced performance.

8. Non-Ideal Components and Temperature Effects

The IR formula assumes that the components are ideal, meaning that their resistance is constant and doesn't change with temperature. However, in reality, the resistance of most components does vary with temperature. As the temperature increases, the resistance typically increases as well.

This temperature dependence can affect the IR losses in a circuit. If a component heats up due to IR losses, its resistance will increase, which in turn will increase the IR losses even further. This can lead to a runaway effect, where the component overheats and eventually fails.

To prevent this, engineers often use components with low temperature coefficients of resistance. They also use cooling techniques to keep the components from overheating. Understanding the temperature effects on resistance is crucial for designing reliable and robust electrical systems.

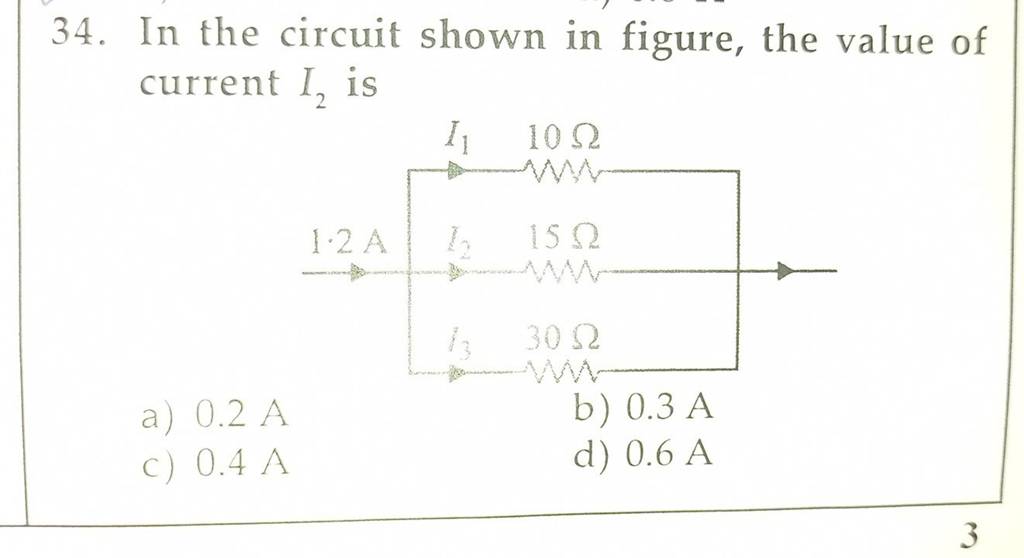

In The Circuit Shown Figure, Value Of Current I2 Is Filo

FAQ

9. Frequently Asked Questions

Alright, let's tackle some common questions that might be swirling around in your brain.

Q: Is IR the only way power is lost in a circuit?

A: Nope! While IR covers resistive losses (heat in wires, resistors, etc.), there are other forms of power loss, especially in AC circuits. Capacitive and inductive elements can store and release energy, leading to losses through different mechanisms, like hysteresis in inductors or dielectric losses in capacitors. So, IR is a major player, but not the entire team.

Q: If IR losses are so bad, why do we even use resistors?

A: Good question! Resistors aren't always about wasting power. They're essential for controlling current, setting voltage levels, and creating stable circuits. Its a trade-off. We design circuits to minimize unnecessary IR losses while still achieving the desired functionality. Think of it like friction in a car engine it's unavoidable, but we try to minimize it for better efficiency.

Q: Can I use IR to intentionally generate heat?

A: Absolutely! That's exactly how electric heaters, toasters, and incandescent light bulbs work! These devices use resistive elements designed to generate heat through IR losses. The key is controlling the resistance and current to produce the desired amount of heat safely.

Q: What's the difference between IR and Ohm's Law?

A: They're related, but different. Ohm's Law (V = IR) describes the relationship between voltage, current, and resistance. IR calculates the power dissipated due to that relationship. Think of Ohm's Law as describing the how (how voltage, current, and resistance interact), and IR as describing the what (what power is lost as a result of that interaction).
