The Curious Case of Leaky MOSFETs

1. Understanding MOSFET Leakage

So, you're wondering if MOSFETs leak? The short answer is: yes, they do. But before you start picturing tiny MOSFETs weeping uncontrollably, let's clarify. It's not like a dripping faucet! "Do MOSFETs leak" is a common question, and the leakage we're talking about is a minuscule current that flows even when the MOSFET is supposed to be "off." Think of it like a very, very slow drain on a battery. Not enough to worry about in most applications, but in some cases, it can be significant.

Why does this leakage happen? Well, it boils down to the quantum mechanical nature of electrons and the imperfections in the silicon material used to make MOSFETs. Electrons, bless their tiny hearts, have a knack for "tunneling" through energy barriers, even when they shouldn't. And imperfections, like impurities and defects in the silicon lattice, create pathways for these errant electrons to find their way through.

Think of it like trying to keep water out of a swimming pool with a dam. Even the best-built dam will have some seepage. Similarly, even the best-designed MOSFET will have some leakage current. It's just the nature of the beast! This isn't necessarily a design flaw; it's more of an inherent limitation of the technology.

Different types of MOSFETs exhibit varying degrees of leakage. Factors such as the manufacturing process, the size of the transistor, and the operating temperature all play a role. Generally speaking, newer technologies and smaller transistors tend to have higher leakage currents. This is because as transistors shrink, the energy barriers become thinner, making it easier for electrons to tunnel through.

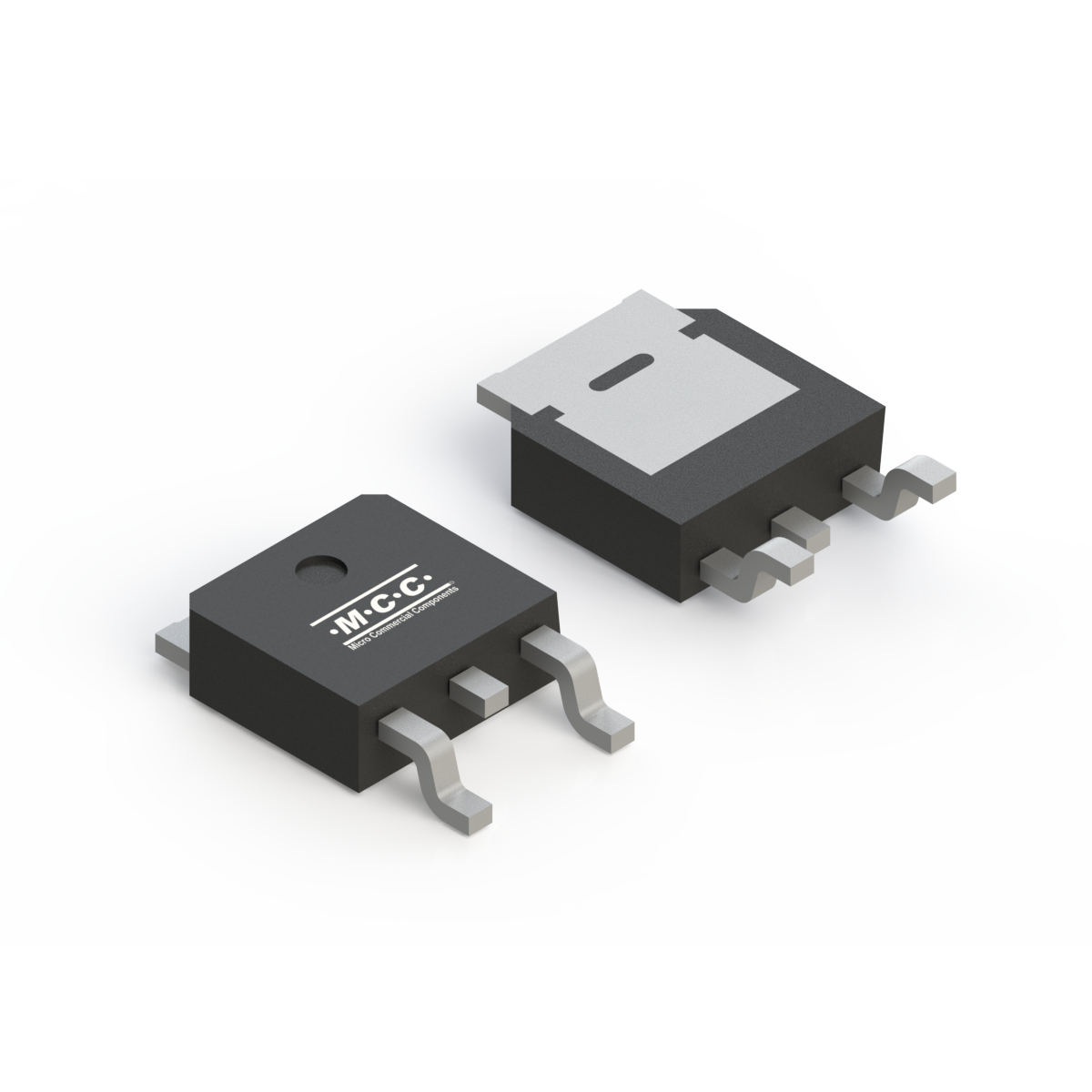

What Is A MOSFET?

Sources of the Drip

2. Delving Deeper

Okay, so we know MOSFETs leak, but where exactly is this current coming from? There are several culprits responsible for this unwanted electron flow. Understanding these sources can help you mitigate their effects in your designs.

Firstly, there's subthreshold leakage, also known as weak inversion. This occurs when the gate voltage is below the threshold voltage, but still allows a small amount of current to flow between the drain and the source. Imagine trying to close a door, but leaving a tiny crack open — some air (or in this case, electrons) can still sneak through.

Secondly, gate leakage is another significant contributor. This happens due to electrons tunneling through the gate oxide, the insulating layer between the gate and the channel. As gate oxides become thinner in modern MOSFETs, this tunneling effect becomes more pronounced. It's like trying to block a river with a very thin sheet of plastic — eventually, the water will find a way through.

Thirdly, junction leakage arises from the reverse-biased diodes formed at the drain and source junctions. These diodes normally block current flow, but a small leakage current can still occur due to minority carriers being swept across the junction. This is similar to a one-way valve that lets a tiny amount of water flow backward.

Finally, GIDL (Gate-Induced Drain Leakage) is a surface leakage current that can become significant under certain bias conditions. It's caused by the high electric field near the drain, which can create electron-hole pairs and inject them into the substrate. This is like creating a small hole in the dam near the water level due to the immense pressure.

What Is MOSFET? A Basic Definition Tom's Hardware

The Heat is On

3. The Thermostat's Role

Temperature and leakage current? Absolutely! Think of it like this: electrons are tiny, energetic particles that are always jiggling around. When you heat things up, they get even more energetic. And more energetic electrons are more likely to overcome energy barriers and contribute to leakage current. So, as temperature increases, leakage current tends to increase as well. The hotter it gets, the more they want to escape!

Specifically, subthreshold leakage is highly temperature-dependent. As temperature rises, the threshold voltage of the MOSFET decreases, making it easier for current to flow even when the transistor is supposed to be off. This is like lowering the height of the dam — more water will be able to flow over it.

Gate leakage, while less temperature-sensitive than subthreshold leakage, can also increase with temperature due to changes in the energy levels of the silicon and the gate oxide. It's a smaller effect, but still contributes to the overall leakage current. Basically, at higher temperatures, the electrons have enough energy to tunnel, even though the tunneling probability isn't hugely affected by temperature in standard operating ranges.

Junction leakage also increases with temperature due to the increased generation of electron-hole pairs. These pairs contribute to the reverse saturation current of the diodes. It's like more water molecules evaporating and condensing on the wrong side of the one-way valve.

What Is A MOSFET? Basics, Working Principle & Applications

When Does It Matter? Applications Where Leakage Looms Large

4. Context is Key

Okay, so "do MOSFETs leak"? Yes. Is it always a problem? No. In many applications, the leakage current is so small that it's practically negligible. But there are certain scenarios where it can become a significant concern. So, let's dive into some of these situations where you really need to pay attention to those sneaky electrons.

One prime example is battery-powered devices, such as smartphones, laptops, and wearables. In these devices, minimizing power consumption is critical to extending battery life. Even a tiny leakage current can add up over time, significantly reducing the time between charges. Think about it — a small leak in a water tank might not seem like much at first, but over several days, it can empty the whole tank.

Another area where leakage matters is in memory circuits, particularly dynamic random-access memory (DRAM). DRAM cells store data as charge on a capacitor. If the MOSFET used to access the capacitor has a high leakage current, the charge can leak away, causing data loss. This necessitates periodic refreshing of the memory cells, which consumes power. Imagine each bit of memory as a tiny bucket of water. Leakage means you constantly have to refill the buckets.

In high-temperature environments, leakage current can be particularly problematic due to its temperature dependence. Applications such as automotive electronics and industrial control systems often operate in harsh conditions with elevated temperatures. In these cases, it's crucial to select MOSFETs with low leakage characteristics or to implement thermal management techniques to mitigate the effects of temperature.

Finally, analog circuits can also be affected by leakage current. In sensitive analog circuits, even a small leakage current can introduce noise and offset errors, degrading the circuit's performance. This is especially true in high-impedance circuits where even a tiny current can cause a significant voltage drop.

Electronics Mini Projects, Electronic Circuit Arduino

Fighting the Flow

5. Stemming the Tide

Alright, so you're convinced that leakage is a problem in your design. What can you do about it? Fear not! There are several strategies you can employ to minimize leakage current and keep those errant electrons in check.

Firstly, careful MOSFET selection is crucial. Choose MOSFETs with low leakage specifications from reputable manufacturers. Pay attention to parameters such as the gate leakage current, the subthreshold leakage current, and the operating temperature range. Look for MOSFETs specifically designed for low-power applications or high-temperature environments.

Secondly, circuit design techniques can help reduce leakage. For example, you can use sleep transistors to completely disconnect parts of the circuit when they're not in use. This effectively eliminates leakage current from those sections. It's like turning off the water supply to a room you're not using.

Thirdly, body biasing can be used to adjust the threshold voltage of the MOSFET and reduce subthreshold leakage. By applying a reverse bias to the body of the MOSFET, you can increase the threshold voltage and make it harder for current to flow when the transistor is supposed to be off.

Fourthly, reducing the operating temperature can significantly reduce leakage current. This can be achieved through thermal management techniques such as using heat sinks, fans, or liquid cooling. In some cases, it may be possible to relocate the circuitry to a cooler environment.

Finally, advanced manufacturing techniques, such as high-k metal gate (HKMG) technology, can help reduce gate leakage. HKMG uses a different gate dielectric material with a higher dielectric constant, which allows for a thicker gate oxide without sacrificing performance. This reduces the tunneling probability and significantly reduces gate leakage current. It's like building a stronger dam!

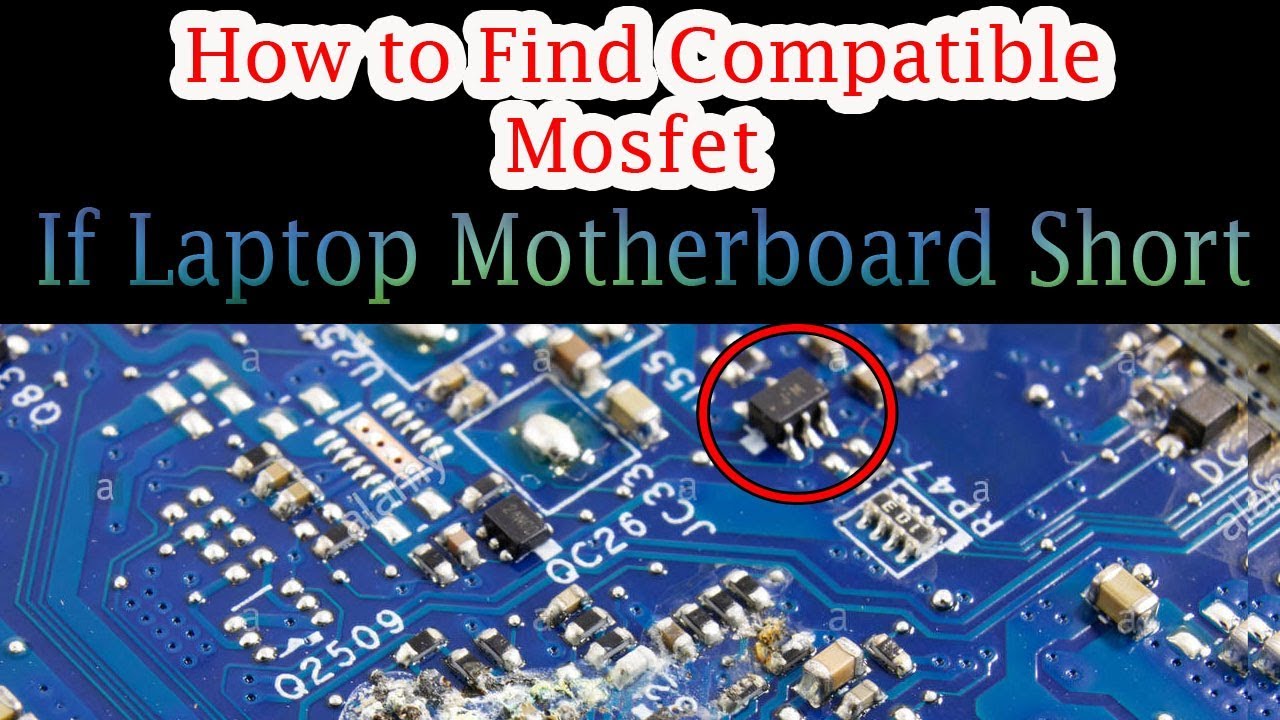

How To Find Compatible Mosfet For Laptop Motherboard YouTube

FAQ

6. Decoding the Drip

Still have questions about MOSFET leakage? You're not alone! Here are some frequently asked questions to help you further understand this phenomenon.

Q: Is MOSFET leakage getting worse with smaller transistor sizes?

A: Yes, generally speaking. As transistors shrink, the energy barriers become thinner, making it easier for electrons to tunnel through. Additionally, supply voltages have been reduced, leading to lower threshold voltages, which can exacerbate subthreshold leakage. Miniaturization allows more transistors on a chip, but increases the per chip leakage.

Q: Can I completely eliminate MOSFET leakage?

A: Unfortunately, no. Due to the fundamental physics of semiconductors, some amount of leakage current is always present. However, you can significantly reduce leakage through careful MOSFET selection, circuit design techniques, and thermal management. It's about minimization, not elimination.

Q: How can I measure MOSFET leakage current?

A: Measuring MOSFET leakage current requires specialized equipment and techniques. A sensitive ammeter or picoammeter is typically used to measure the current flowing between the drain and source when the MOSFET is supposed to be off. It's important to carefully control the temperature and voltage conditions during the measurement to obtain accurate results. Look up the datasheets and test environments for the product. There's usually a test to determine this characteristic.
